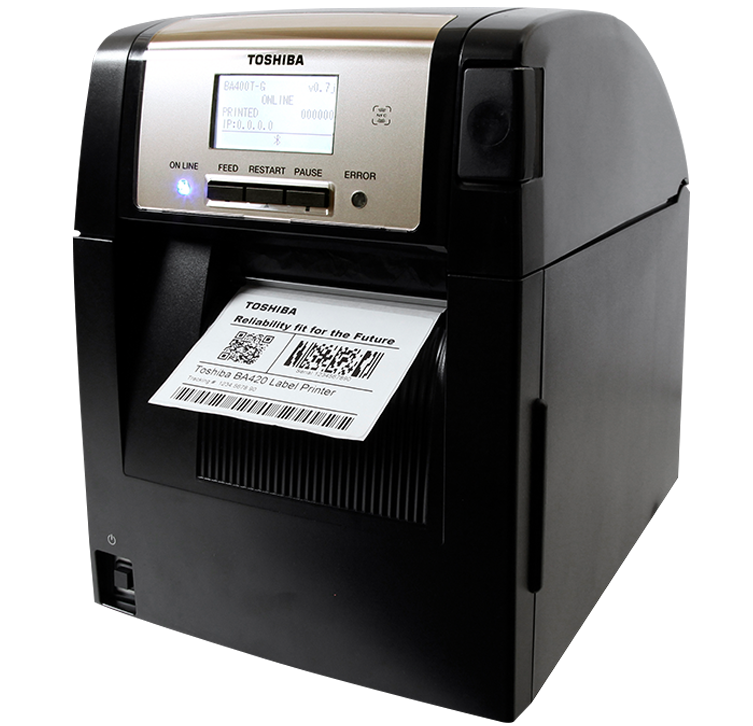

BA420TTS12QMSM01 Toshiba 4″ Thermal Transfer Printer

BA420

• 4″ Thermal Transfer (Plastic Case)
• Resolution: 300 DPI
• Speed: 8 IPS
• Full Value Mid Range Printer
• Space Saving Top Loading
• Available in U.S. and Latin America

BA420 SPECIFICATIONS

Technology – Thermal Transfer / Direct Thermal

Resolution – 300 dpi

Media Width – 0.87″–4.13″ (22–105 mm) – Thermal Transfer 0.98″–4.65″ (25–118 mm) – Direct Thermal

Print Speed – Up to 8 ips

Interfaces (Standard) – USB 2.0 HS, Bluetooth V2.1 EDR with Mfi Certified, Ethernet (IPv4&IPv6)

Barcodes – JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4STATE CUSTOMER CODE), GS1 DataBar, MATRIX 2 of 5 for NEC

2D Codes – Data Matrix, PDF 417, Maxicode, QR Code, Micro PDR 417, CP Code, Aztec, GS1 Data Matrix

Fonts – Bitmap, Outline, Writable Characters, Optional TrueType, OTF

Dimensions – (W x D x H)9.4″ x 13.1″ x 13.7″

Weight – 26.5 lbs.

To use this Toshiba 4″ Thermal Transfer Printer, first, make sure it’s properly connected to your power source and the desired interface (USB, Bluetooth, or Ethernet). Load the media within the specified width range (0.87″–4.13″ for thermal transfer). Select the type of barcode or 2D code you want to print from the available options. You can choose the font according to your need. When printing, keep an eye on the ink or thermal transfer ribbon levels. If you notice any smudging or unclear prints, it might be time to check the print head. Clean the printer regularly using a soft, dry cloth to keep it in good working condition. Avoid exposing it to extreme temperatures or humidity. Also, make sure the printer drivers are up – to – date for smooth operation.
